Moisture Meters:  Soil & Others  |  Hay, Crops & Compost  |  Building Materials

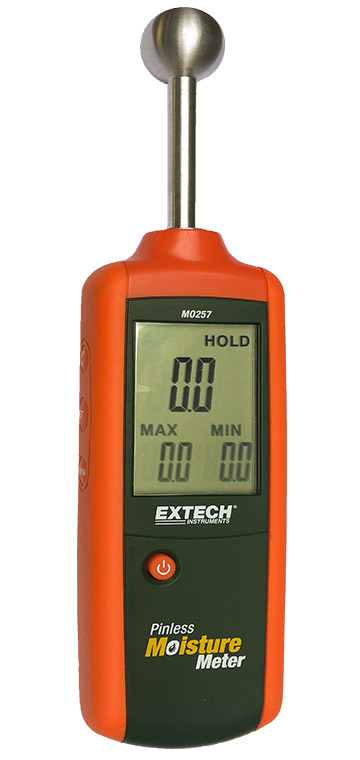

Extech MO257 Pinless Moisture Meter for Wood & Building Materials

Measures relative moisture of various building materials including wood, particle board, carpeting, and ceiling tiles using non-invasive Pinless Technology.

Features:

257 Pocket Building Materials Moisture Meter
  • Relative pinless moisture reading for non-invasive measurement from 0.0 to 100.0 with 0.1 resolution
  • Measurement depth up to 1.6" (40mm) below the surface
  • Multifunction backlit triple LCD display
  • Adjustable MIN/MAX alarm levels with audible/visual alert
  • Pinless measurement depth from 0.78" (20mm) to 1.6" (40mm) below the surface
  • High frequency sensing technology
  • Automatic Data Hold
  • Two adjustable alarm levels with audible beeper and visual (flashing 'RISK' or 'WET') indicators
  • Automatic calibration (in dry air) when meter is powered on
  • Low battery indication, Auto Power off
  • Complete with 3 AA batteries and pouch

Specifications

  • Moisture Range 0.0 to 100.0 Relative only
  • Measurement Depth 20 to 40mm (0.79 to 1.57")
  • Display type Backlit LCD
  • Display digits Three (3) numeric displays; each displaying from 0.0 to 100.0
  • Display icons HOLD, DRY, RISK, WET, MIN, MAX and low battery icon
  • Operating Temperature 4 to 43°C (40 to 110°F)
  • Operating Humidity 90%, 0-30°C (32-86°F), 75%, 30-40°C (86-104°F), 45%, 40-50°C (104-122°F)
  • Power Supply Three (3) 1.5V 'AAA' batteries
  • Auto Power Off (APO) After 30 minutes of inactivity
  • Dimensions 235 x 63 x 28mm (9.2 x 2.5 x 1.1")
  • Weight 218g (7.7oz)

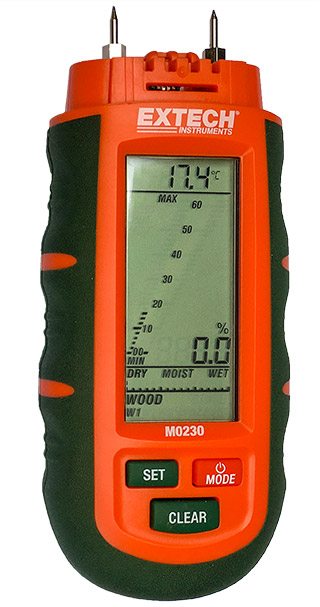

Extech 230 Moisture Meter for Wood & Building Materials

Features:

230 Pocket Building Materials Moisture Meter
  • Unique Digital LCD readout with analog bargraph and numerical displays;
  • Simultaneous digital readout of moisture content plus ambient temperature or humidity with analog bargraph display of moisture, Max moisture values, and programmable wet/dry indication.
  • Use on wood, paper, wall board, sheet rock, cardboard, plaster, concrete, and mortar;
  • Memory contains 3 wood groups and 4 building material groups with calibrations for approximately 150 species of wood and 19 building material types;
  • Index Mode with programmable high and low values can be used to quickly locate moisture with comparative measurement;
  • Replaceable threaded measurement electrode pins;
  • Impact proof housing;
  • Auto power off conserves battery energy;
  • Battery operated for on-the-go measurements;
  • Built-in battery check and measurement verification test;
  • Complete with protective cap, replacement pins, and three CR-2032 button batteries.

The 230 Pocket Moisture Meter measures moisture of wood and building materials. The built-in battery check and measurement verification test to insure accurate readings. LCD screen is optimized for a 30 degree viewing angle.

Specifications

  • Wood Moisture Range 0 to 75%
  • Other Building Materials 0.1 to 24%
  • Temperature -40 to 158°F (-40 to 70°C)
  • Relative Humidity 0 to 100%RH
  • Measurement principle Electrical resistance
  • Electrode length 0.3" (8mm)
  • Electrode pins Integrated, replaceable
  • Auto Power Off After approx. 3 minutes
  • Operating Temperature 32 to 104°F (0 to 40°C)
  • Operating Humidity 85% Relative Humidity maximum
  • Power supply Three CR-2032 button cells
  • Dimensions 6.25 x 2.5 x 1.2" (159 x 63.5 x 30.5mm)
  • Weight 3.5 oz (100g)
